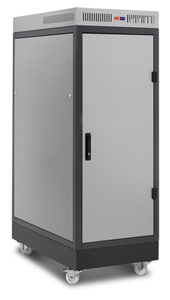

Whisper V2 Soundproof Rackmount Cabinets Range
Manufactured in the UK the Whisper V2 Soundproof racks (racks) are the 2nd generation product of the original popular Whisper rack. They have their own unique design and ‘look’ and come in a wide range of sizes.
Features Overview:
- Physical Capacity: 15U, 27U, 36U, 42U rack spaces
- Maximum recommended thermal load: 3kW (10,2741 BTU/hr)
- Availability: EU and ROW (220/240V)
Pros
- Very low ambient noise
- Noise reduction and thermals cover most situations
- Good value
Cons
- Some limitations on higher range IT performance
- No dust filter
- Some U may need to be sacrificed to achieve good airflow
Feedback From Our Global Network
Good mid range or entry player for noise reduction and thermals – not available currently in the USA
To obtain more information on the right quiet rack for your needs we can arrange for a local quiet rack specialist to contact you
| Cable Entry | Brush strip entry at the bottom rear Dimensions: approx. 3" x 15.5" |
| Cooling Fans | 9 x Ultra-quiet cooling fans located in the roof |
| Acousti Material Flammability Rating | BS 476, Part 7: Class 1 BS 476, Part 6: I<12, I(1) <6 (Class 'O' to Building Regulations) |
| Security | Key lockable front & rear doors and side panels |
| Cabinet Finish | Heavy duty steel construction |
| Cabinet Color | Two-tone Grey Other colors are optional |
| Max. Distributed Load | 400 Kg - evenly distributed |
| Cabinet Features | 4 post rack with square fixing holes - adjustable front & rear Heavy duty castors |
| Air-Filtration System | Not Available |
| Optional Accessories | General 19" rackmount accessories |
| Delivery | Ships assembled and ready to go |
| Useable Height | Product Code | Max. Useable Depth* | External Dimensions (HxWxD) | Cabinet Weight |
| 15U | WSP-15U-610 | 35.24" | 41.97" x 23.62" x 39.37" | 189.6 lbs |
| 15U | WSP-15U-612 | 43.11" | 41.97" x 23.62" x 47.24" | 198.42 lbs |
| 27U | WSP-27U-610 | 35.24" | 62.99" x 23.62" x 39.37" | 277.78 lbs |
| 27U | WSP-27U-612 | 43.11" | 62.99" x 23.62" x 47.24" | 286.6 lbs |
| 36U | WSP-36U-610 | 35.24" | 78.74" x 23.62" x 39.37" | 328.49 lbs |
| 36U | WSP-36U-612 | 43.11" | 78.74" x 23.62" x 47.24" | 339.51 lbs |
| 42U | WSP-42U-610 | 35.24" | 89.25" x 23.62" x 39.37" | 418.88 lbs |
| 42U | WSP-42U-612 | 43.11" | 89.25" x 23.62" x 47.24" | 432.11 lbs |
*The cabinets are assembled with a 1.97" recess from the front to ensure sufficient space for the free-flow of cool air to installed equipment. The rail to rail depth is 34.25" (1000mm deep cabinet) and 42.13" (1200 deep cabinet).
